Industrial Compressed-Air & Vacuum Equipment Package – Kaeser, Sullair & Quincy Compressors, Dryers, Vacuum Pumps & Receiver Tanks

INDUSTRIAL COMPRESSED-AIR & VACUUM EQUIPMENT

AIR COMPRESSORS

2019 KAESER CSD 125

Manufacturer: Kaeser
Model: CSD 125
Year: February 2019
Serial Number: 1009-6914013
Material Number: 101821.2
Type: Rotary Screw Air Compressor
Rated Power: 125 HP
Maximum Working Pressure: 125 PSIG
Rated Motor Speed: 3,584 RPM
Electrical: 460Y/266 VAC
Phase/Frequency: 3 Phase / 60 Hz
Full-Load Current: 158 Amps
Drive-Motor Current: 135 Amps
Controller: Kaeser Sigma Control 2

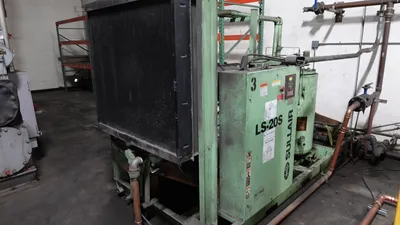

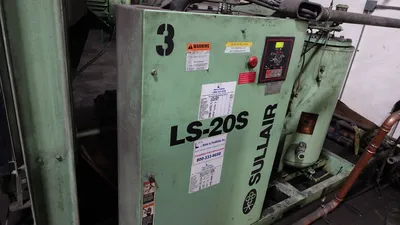

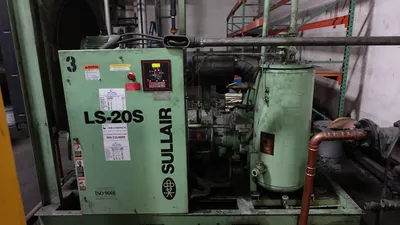

SULLAIR LS-20S 125

Manufacturer: Sullair
Model: LS-20S 125
Serial Number: 003-141479
BOM Number: 02250052-166
Type: Rotary Screw Air Compressor
Rated Power: 125 HP
Rated Air Pressure: Approximately 110 PSIG
Maximum Air Pressure: Approximately 120 PSIG
Controller: Sullair Electronic Controller

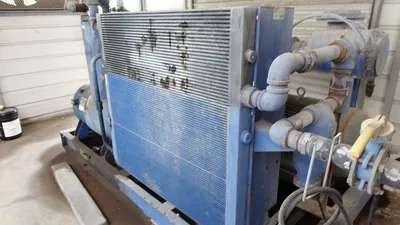

2007 SULLAIR LS25-200H/W

Manufacturer: Sullair
Model: LS25-200H/W
Year: 2007
Serial Number: 200707160049
Work Order Number: 2376909
BOM Number: LS252G/112419A
Type: Water-Cooled Rotary Screw Air Compressor
Rated Power: 200 HP
Rated Air Pressure: 125 PSIG
Maximum Air Pressure: 135 PSIG
Controller: Sullair Supervisor Controller

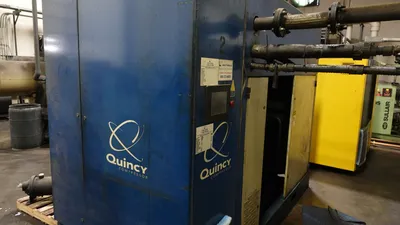

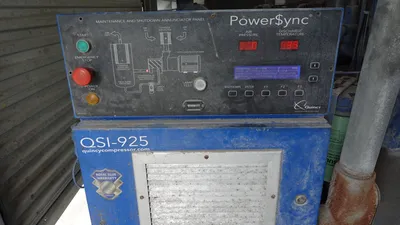

2014 QUINCY QSI-925

Manufacturer: Quincy Compressor
Model: QSI-925
Date: August 24, 2014
Serial Number: UTY200773
Product Number: 201220114
Type: Rotary Screw Air Compressor
Controller: Quincy Power$ync
Controls Include: Air Pressure, Discharge Temperature, Maintenance Alerts and Shutdown Protection

VACUUM PUMPS

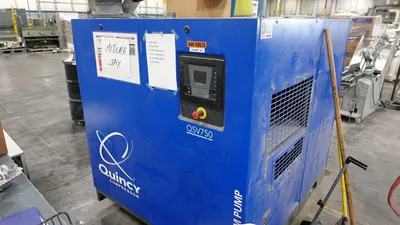

2018 QUINCY QSV 750

Manufacturer: Quincy Compressor
Model: QSV 750
Year: 2018
Serial Number: AP1184322
Type: Industrial Vacuum Pump
Ultimate Pressure: 0.35 mbar Absolute
Ultimate Pressure: 0.28 Torr / 35 Pa
Motor: 22.5 kW / 30 HP
Motor Speed: 4,500 RPM
Electrical: 380–460 Volts
Phase/Frequency: 3 Phase / 50–60 Hz
Weight: 1,058 kg / 2,332 lb

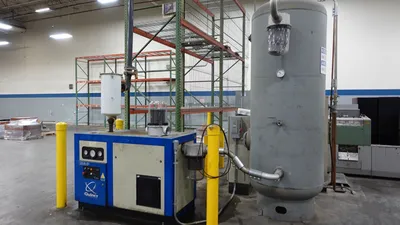

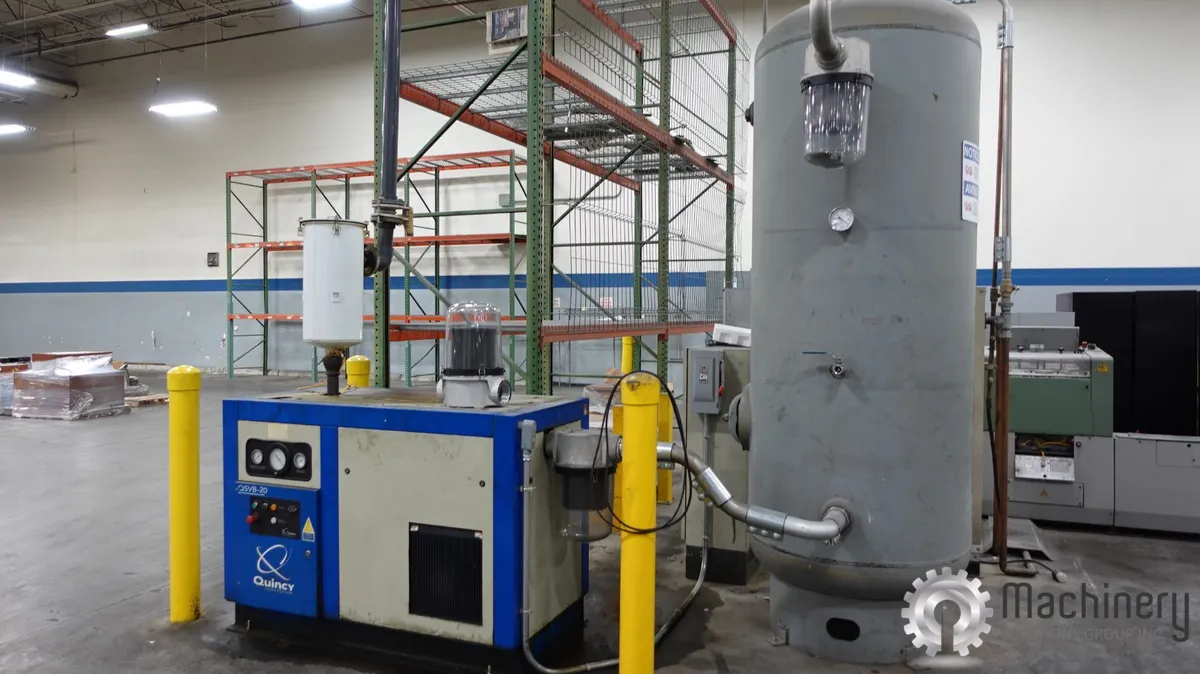

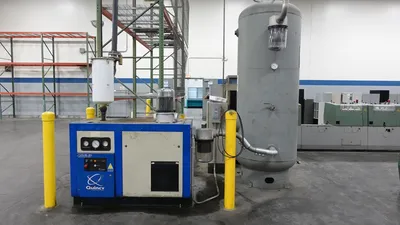

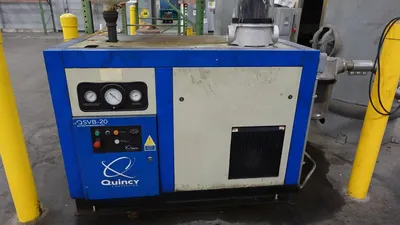

QUINCY QSVB-20

Manufacturer: Quincy Compressor
Model: QSVB-20
Type: Industrial Vacuum-Pump System
Configuration: Packaged Vacuum Pump with Vertical Receiver
Includes: Controller, Gauges, Filtration, Separator, Receiver and Connected Components Shown

REFRIGERATED COMPRESSED-AIR DRYERS

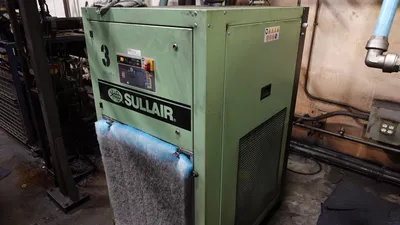

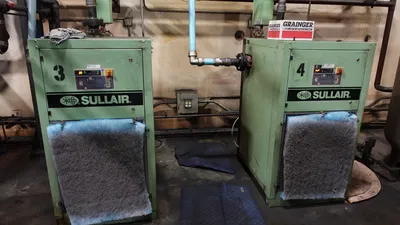

SULLAIR SRP1000 — TWO SIMILAR UNITS AVAILABLE

Manufacturer: Sullair
Model: SRP1000 AC 460V Z cUL
Year: 2020
Confirmed Serial Number: 200000413/20
Material Number: 02250242-136
SAP Number: 4043102
Nominal Flow Rate: 1,000 SCFM
Refrigerant: R-407C
Refrigerant Charge: 113 oz.
Electrical: 460 VAC / 3 Phase / 60 Hz
Full-Load Current: 10.5 Amps
Recommended Fuse: 16 Amps
Quantity: Two Similar Units; Confirm Second Nameplate

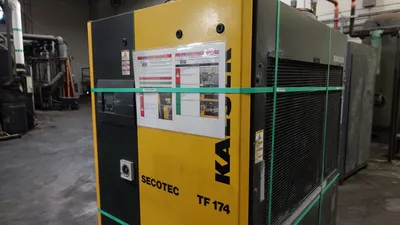

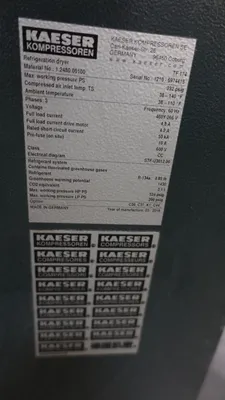

2019 KAESER SECOTEC TF 174

Manufacturer: Kaeser
Series: Secotec
Model: TF 174
Year: March 2019
Serial Number: 1210-6974415
Material Number: 1.2480.00100
Type: Refrigerated Compressed-Air Dryer
Maximum Working Pressure: 232 PSIG
Compressed-Air Inlet Temperature: 38–140°F
Ambient Temperature Range: 38–110°F
Electrical: 460Y/266 VAC
Phase/Frequency: 3 Phase / 60 Hz
Refrigerant: R-134a
Refrigerant Charge: 4.85 lb.

KAESER TF 371E

Manufacturer: Kaeser
Model: TF 371E
Type: Industrial Refrigerated Compressed-Air Dryer
Electrical Configuration: 460-Volt Industrial Service
Complete Serial Number, Year and Flow Rating: To Be Confirmed

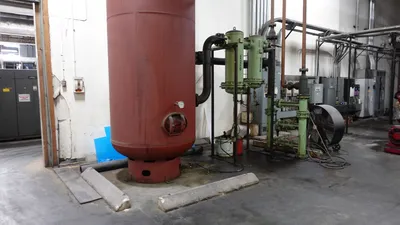

RECEIVER TANKS & SYSTEM COMPONENTS

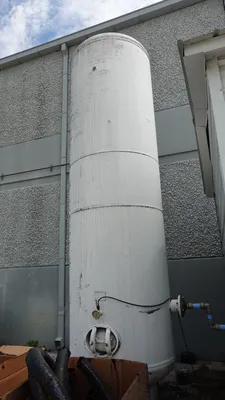

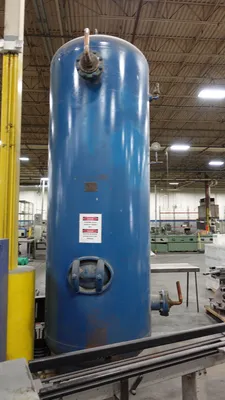

Multiple Vertical Compressed-Air Receiver Tanks
Indoor and Outdoor Tank Configurations
Pressure Gauges
Inlet and Outlet Connections
Drain Connections
Moisture Separators
Air and Vacuum Filtration Components
Associated Controls and Components Shown

Exact receiver capacities, manufacturers, ASME ratings, dimensions and maximum working pressures must be confirmed from the individual tank nameplates.
