Square D QED Power Style Switchboards and Model 5 Motor Control Center
Have one to sell?
ConditionUsed
1 available

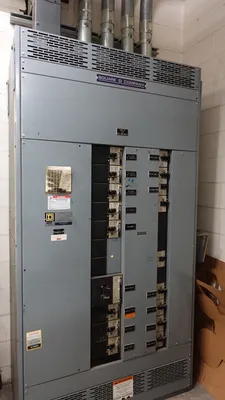

Package of seven Square D QED Power Style electrical-distribution switchboards and one three-section Square D Model 5 motor control center.

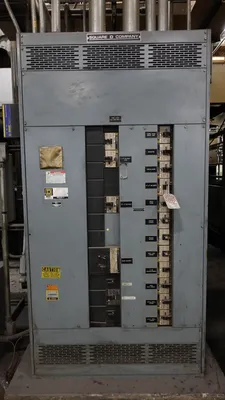

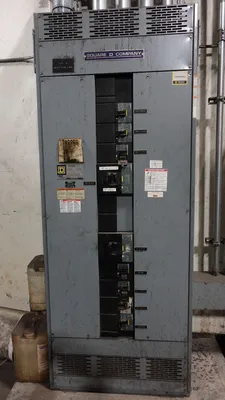

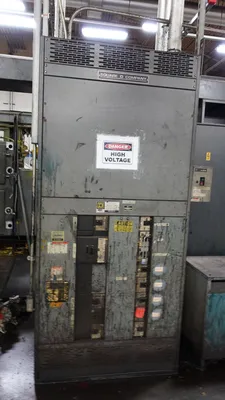

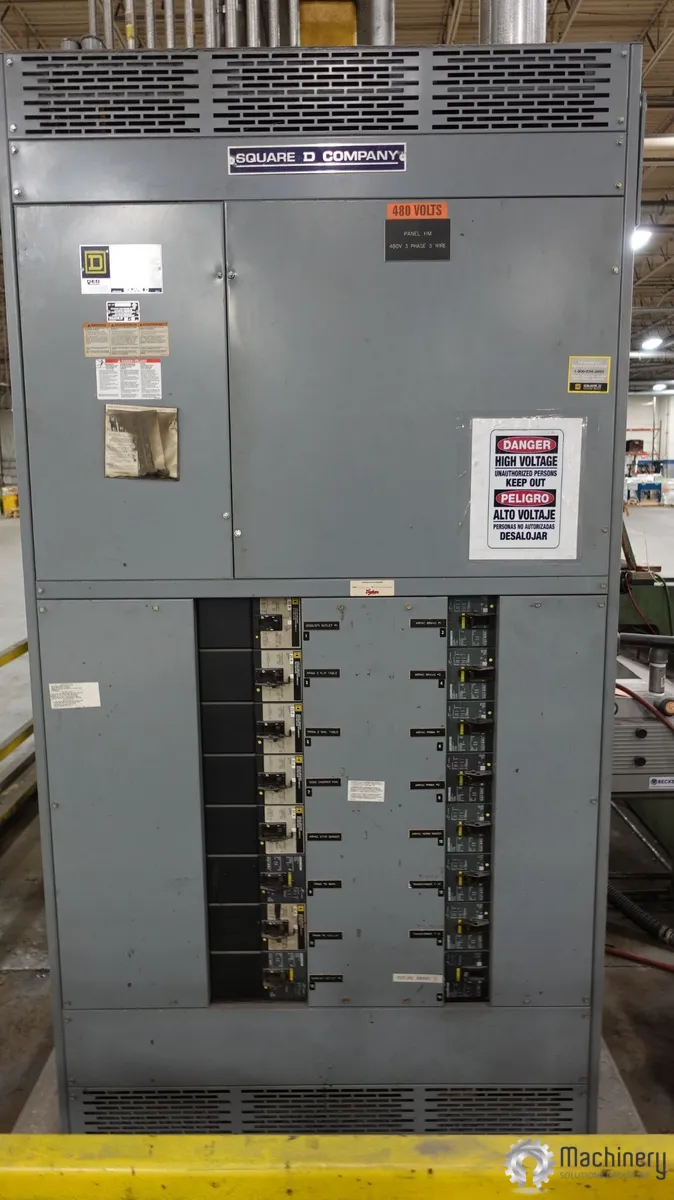

The floor-standing switchboards include 480V and 480Y/277V configurations with maximum supply ratings ranging from 800 to 1,600 amps. Each switchboard includes installed Square D feeder and branch circuit breakers in a Type 1 indoor enclosure.
The three-section Model 5 motor control center is rated for a maximum of 600V AC and includes multiple starter/control buckets with disconnect handles, pushbuttons and selector controls.
Equipment is used and shows normal wear from an industrial environment. No operational testing information has been provided. All ratings should be verified from the equipment nameplates, and each unit should be inspected by a qualified electrician before installation or energizing.
Manufacturer: Square D
Equipment Type: Switchboards and Motor Control Center
Total Quantity: (8) Units
Power Switchboards: (7)
Motor Control Center: (1) Three-Section Assembly
Switchboard Series: QED / QED Series 2 Power Style
MCC Model: Model 5
Switchboard Voltages: 480 V and 480Y/277 V
MCC Maximum Voltage: 600 V AC
Frequency: 60 Hz
Electrical Service: Three-Phase
Wiring Configurations: Three-Wire and Four-Wire
Switchboard Ratings: 800–1,600 A Maximum Supply
Enclosure Type: Type 1 Indoor
Condition: Used
Unit 1 — Panel HM
Series: QED Power Style, Type S
Voltage: 480 V
Frequency: 60 Hz
Maximum Supply Rating: 800 A
Maximum Section Rating: 800 A
System: 3-Phase, 3-Wire
Enclosure: Type 1
Unit 2 — Panel Web 8
Series: QED Power Style
Voltage: 480Y/277 V
Frequency: 60 Hz
Maximum Supply Rating: 1,600 A
Maximum Section Rating: 800 A
System: 3-Phase, 4-Wire
Enclosure: Type 1
Unit 3 — Panel M600
Series: QED Power Style, Type 2
Voltage: 480Y/277 V
Frequency: 60 Hz
Maximum Supply Rating: 1,600 A
Maximum Section Rating: 1,600 A
System: 3-Phase, 4-Wire
Enclosure: Type 1
Catalog/Drawing Number: 14177190-003
Unit 4
Series: QED Series 2 Power Style, Type S
Voltage: 480Y/277 V
Frequency: 60 Hz
Maximum Supply Rating: 1,200 A
Maximum Section Rating: 1,200 A
System: 3-Phase, 3-Wire
Enclosure: Type 1
Catalog/Drawing Number: 36350321-022
Unit 5 — Panel HL
Series: QED Power Style, Type S
Voltage: 480 V
Frequency: 60 Hz
Maximum Supply Rating: 1,200 A
Maximum Section Rating: 1,200 A
System: 3-Phase, 3-Wire
Catalog/Drawing Number: 2379-516-002
Unit 6
Series: QED Power Style
Voltage: 480Y/277 V
Frequency: 60 Hz
Maximum Supply Rating: 1,200 A
Maximum Section Rating: 1,200 A
System: 3-Phase, 4-Wire
Enclosure: Type 1
Unit 7
Series: QED Power Style, Type 2
Voltage: 480Y/277 V
Frequency: 60 Hz
Maximum Supply Rating: 1,000 A
Maximum Section Rating: 1,000 A
System: 3-Phase, 4-Wire
Enclosure: Type 1
Catalog/Drawing Number: 14177190-002
Unit 8 — Motor Control Center
Model: Square D Model 5
Configuration: Three-Section MCC
Maximum Voltage: 600 V AC
Horizontal Bus Rating: 600 A
Vertical Bus Rating: 300 A
Certification: UL Listed
* (7) Square D QED/QED Series 2 Power Style switchboards
* (1) Three-section Square D Model 5 motor control center
* Assorted installed Square D feeder and branch circuit breakers
* Main and distribution breaker sections
* Type 1 indoor floor-standing enclosures
* Deadfront switchboard construction
* Multiple MCC motor starter and control buckets
* External disconnect operating handles
* Start/stop pushbuttons and selector controls

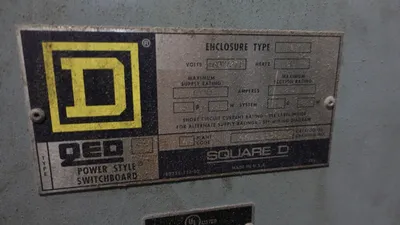

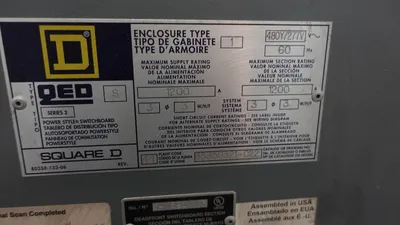

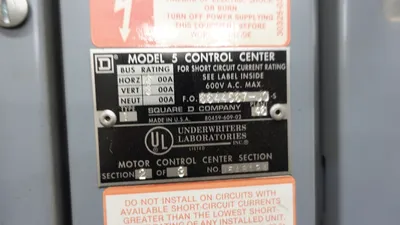

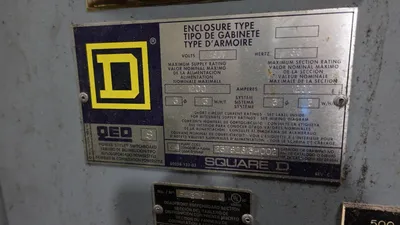

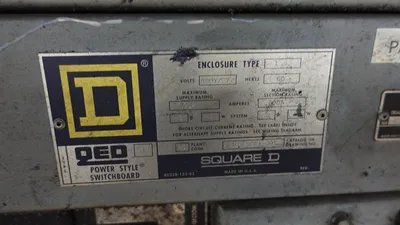

* Circuit-identification labels and equipment nameplates
* Vented steel cabinets
