2023 KTI ZG2250-07 Automatic Butt Splicers – Tandem Pair
Have one to sell?
ConditionUsed
1 available

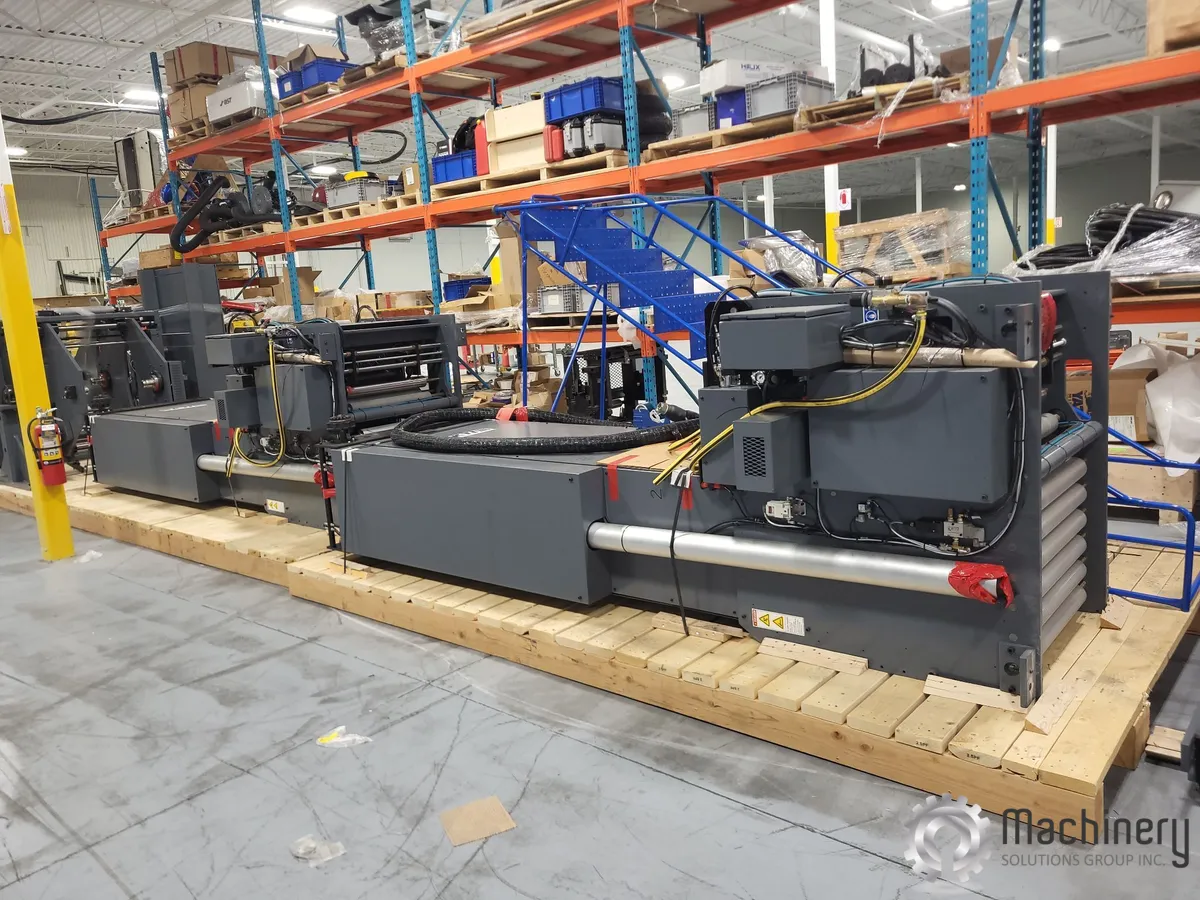

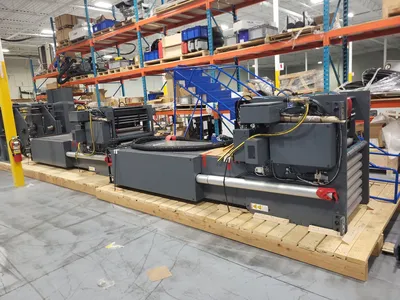

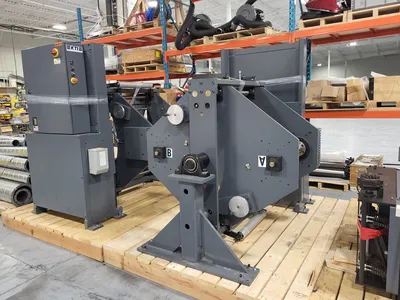

Matched pair of 2023 KTI automatic shaftless butt splicers designed to provide a continuous supply of roll-fed material to a web press or converting line. The integrated web-storage system allows automatic zero-speed butt splicing while the production line continues operating.
Manufacturer: KTI / Quantum Design
Model: ZG2250-07
Year: 2023
Quantity: Two (2) Units
Configuration: Tandem Pair
Serial Numbers: 3717 and 3718
Machine Type: Automatic Shaftless Butt Splicer
Maximum Web Width: 22 in.
Maximum Roll Diameter: 50 in.
Maximum Roll Weight: 1,200 lbs.
Rated Line Speed: 700 FPM
Core Size: 3 in.
Electrical: 480 V / 60 Hz / 3 Phase
Full Load Amperage: 9 Amps per Unit
Load Generator Motor: 3.1 Amps
SCCR: 5 kA RMS at 480 VAC
Enclosure Type: Type 1
Two (2) Shaftless Roll Positions per Unit
Automatic Zero-Speed Butt Splicing
Diagonal Butt Splice Without Web Overlap
Integrated Web-Storage Festoon
Automatic Splice Sequencing
Tandem Dual-Web Configuration
Electrical Control Cabinets
Pneumatic Controls and Regulators
Operator Controls
Safety Guarding
Consecutive Serial Numbers
Currently Removed and Packaged for Shipment
