2002 Goss Sunday 4000/48 (4) Unit Web Offset Press System | 22.75" Cutoff | PCC-2 Folder
Have one to sell?
ConditionUsed
1 available
This 2002 Goss Sunday 4000/48 is a four-unit, single-web heatset web offset press with a 22.75" / 578 mm cutoff and 57" / 1450 mm maximum web width. The press was shipped new in September 2001 and began live production in February 2002.
The press is equipped with a Contiweb FMR 1460 Type III splicer, four Goss blanket-to-blanket printing units, Goss Autoplate, OMNICON controls, Contiweb Ecocool/T dryer, Goss PCC-2 pinless combination folder with single former, single tabloid delivery, and quarter folder delivery.
2002 Goss Sunday 4000/48 (4) Unit Single Web Heatset Web Offset Press
Manufacturer: Goss
Model: Sunday 4000/48
Year: 2002
Type: Commercial Heatset Web Offset Press
Configuration: Four-unit, single-web press
Format: Sunday 4000/48 platform
Cutoff: 22.75" / 578 mm
Cylinder Development: 45.5" / 1156 mm
Maximum Web Width: 57" / 1450 mm
Maximum Printing Speed: Up to 37,500 cylinder revs/hour
Maximum Web Speed: 12 m/s / 2,370 fpm
Power: 480V +/-10%, 3 phase, 60 Hz
Colors: 4
Folder: Goss PCC-2 pinless combination folder with single former
Folder / Product Capability:
• Single tabloid delivery
• Quarter folder delivery
• No digest fold
• No double-parallel delivery
• Contiweb FMR 1460 Type III splicer with integrated infeed and web guide for one-web operation
• Contiweb unpack station for splicer
• Contiweb core container for splicer
• Goss plate and roller lift between splicer and Unit 1 entrance

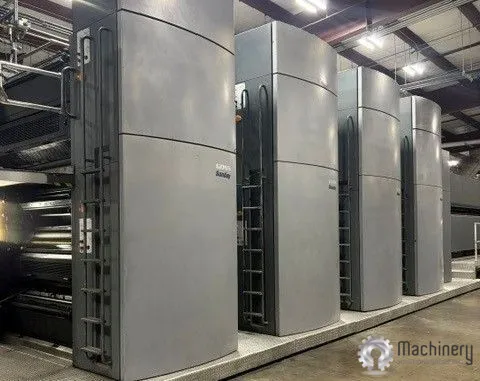

• Four Goss blanket-to-blanket printing units
• Goss ink levelers for four printing units
• Goss web catcher
• Four Goss Autoplate devices
• Baldwin automatic blanket cleaners for four printing units
• Technotrans delta.c 1250 combination circulator for dampening solution cooling and ink roller temperature control
• Goss motorized web-up system from dryer to slitter entrance
• Contiweb Ecocool/T 149-1460 dryer with integrated afterburner
• Contiweb Ecobox 149-1460 energy recovery unit
• Goss auxiliary stack
• Goss angle bar system: 1 web in, 3 ribbons out
• Goss PCC-2 pinless combination folder with single former
• Single tabloid delivery, no double-parallel delivery
• One transfer module / integrator with one quarter folder delivery
• WPC CCR+ automatic color register system
• WPC ribbon cutoff control for three ribbons
• GMI Color Quick closed-loop color control upgraded to Clarius
• Planatol Combijet 7 COM spine softening and gluing system with pump
• Goss modular AC main press drive system with drive cabinets
• Mezzanine to support electrical, control, dryer, drive, switchgear cabinets, and transformer
• NELA pneumatic plate punch
• NELA semi-automatic plate bender
• Goss OMNICON control system
• PCC-2 folder control console
• Two Goss main press consoles with color control
• One Goss OMNICON Size 1 console without color
• RECMI HP1200 horizontal log stacker with robotic gantry palletizer
• Floor conveying line, curves, selection module, waste removal system, log removal table, CPAL crane palletizer, and TP compensating stacker
