Used AutoFeeds High-Speed Two-Sided Thermal Laminating System | Production Line
Have one to sell?
ConditionUsed
1 available

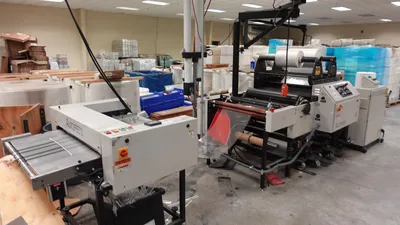

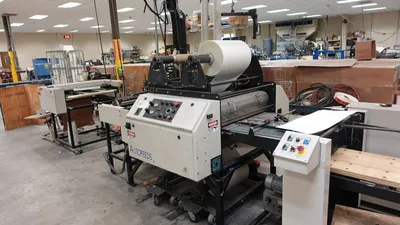

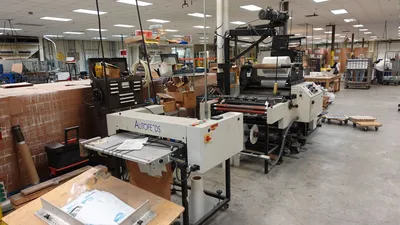

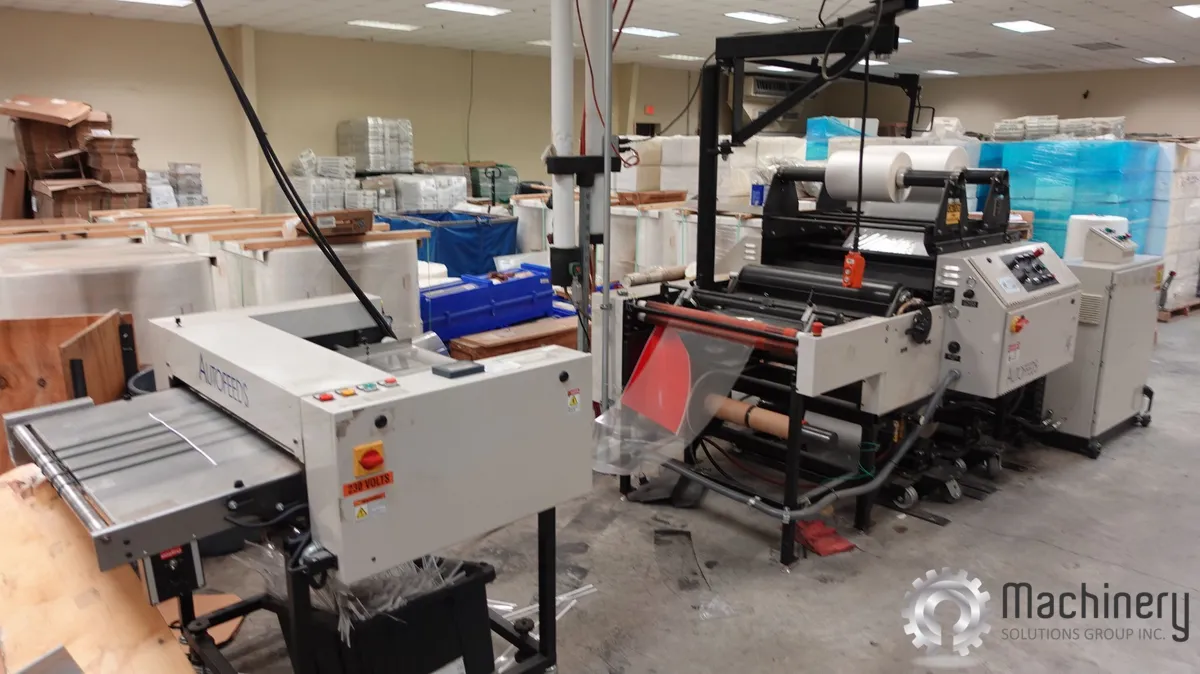

High-speed, two-sided thermal laminating system with AMF 3048 feeder paired to the industry-leading HSTS 3048 laminator. This system delivers exceptional throughput, precise sheet feeding, and consistent laminate quality — ideal for high-volume print finishing operations.
High-Speed Two-Sided Thermal Laminating System (AMF Feeder)
Manufacturer: AutoFeeds
Model: HSTS 3048 with AMF 3048 Feeder
Type: Two-Sided Sheet-Fed Thermal Film Laminating System
Condition: Used
System Features:
• Two-sided sheet-fed laminating system with automatic feeding and registration
• Cast alloy, hard-anodized heat rolls (electrically heated, 8-minute warm-up)
• Water-cooled “S-wrap” chill roll with upper/lower fan banks for controlled cooling
• Integrated edge trim and waste rewind system
• Variable line speeds up to 150 ft/min (standard) and 300 ft/min (specialty films)
• Automatic film tension control from full roll to core
• Designed for 10 mil film encapsulation at high speeds
Feeder (AMF 3048):
• Handles sheet sizes up to 30" x 48" (minimum 5" x 8")
• Precision back-separation feeding system for scuff-free sheet handling
• 36" load height capacity
• Adjustable registration table with fine lateral and angular control
• Quick retract feature for laminator access
• Keypad controls for setup and operation
Laminator (HSTS 3048):
• 6" diameter hard-anodized heat rolls with uniform heat transfer
• Independent digital temperature control
• Adjustable pressure nip for quality control
• Dual unwind carriages for upper/lower film rolls (24" diameter capacity)
• Integrated chill roll cooling and trim rewind
• Edge slitting with fine lateral adjustment
Cutter (NTA-30 HS Autocutter):
• High-speed automatic cutter rated up to 200 ft/min
• Precision accuracy ±0.005"
• Handles all film gauges including 10 mil polyester
Highlights:
• Proven reliability and productivity in commercial print finishing
• Robust aluminum and stainless-steel construction
• Ideal for encapsulation, two-sided lamination, and high-volume production
📩 Contact us for pricing, inspection details, or additional photos.
