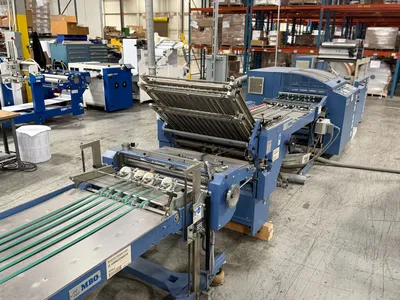

2007 MBO ASP66L-2ME Roll-Fed Finishing Line

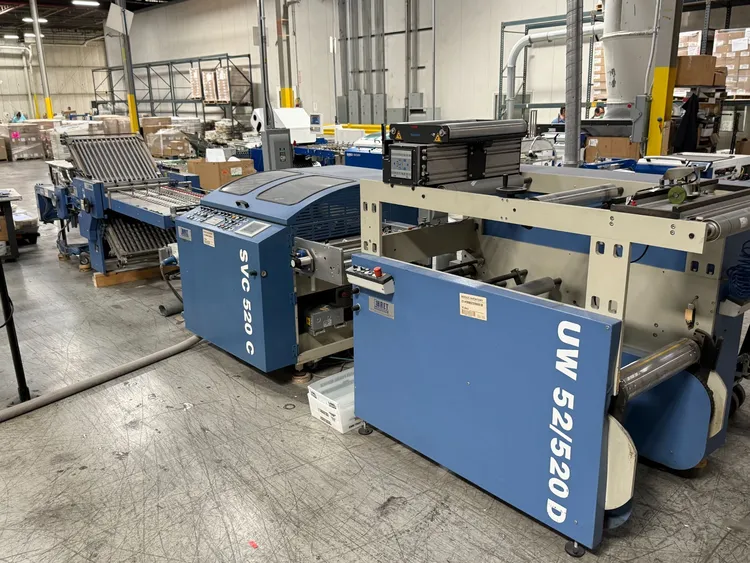

For Sale: 2007 MBO ASP66L-2ME Roll-Fed Finishing Line Includes: UW 52/520 Unwinder, SVC 520C Panel Sheeter, and ASP Stream Delivery System Ideal for Direct Mail, Transactional, and Commercial Print Applications

🔧 Included Equipment & Specifications

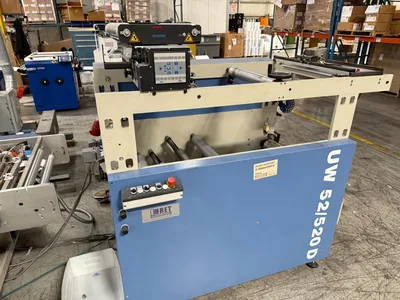

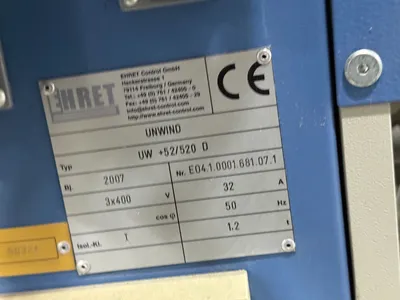

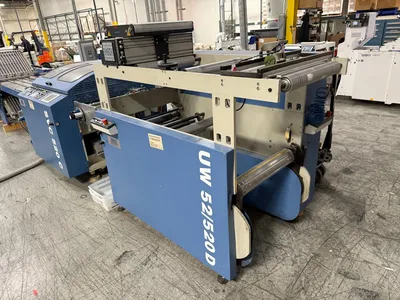

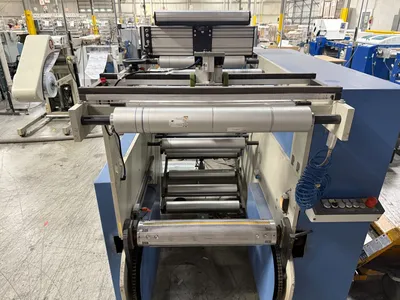

MBO UW 52/520 Unwinder
Max Roll Width: 20"
Max Roll Diameter: 52"
Consistent web tension and robust web handling for smooth infeed

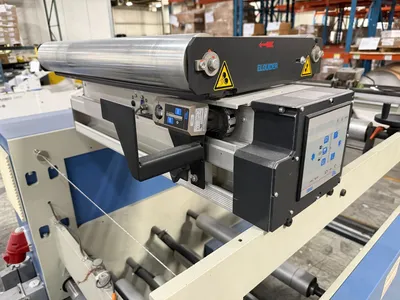

Includes infeed web guide rollers and shafts

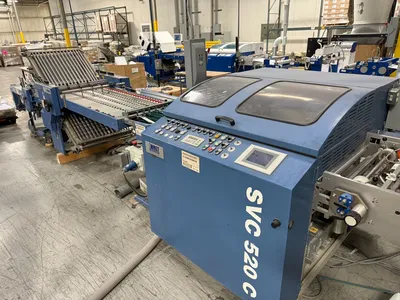

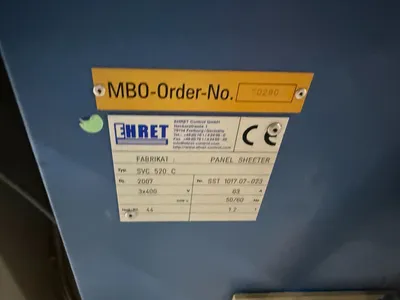

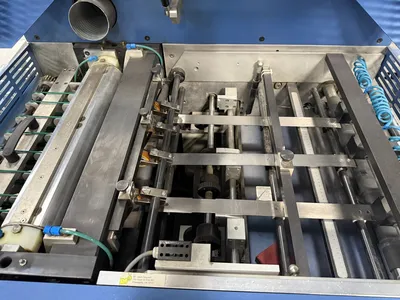

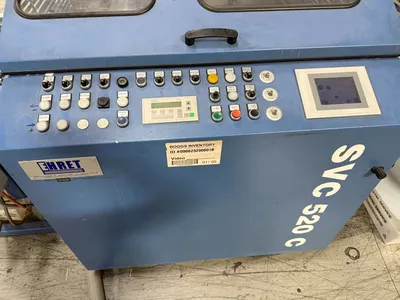

SVC 520C Panel Sheeter
Touchscreen interface with job memory
Variable cutoff length: 4” to 80”
±0.010" register accuracy using closed-loop control

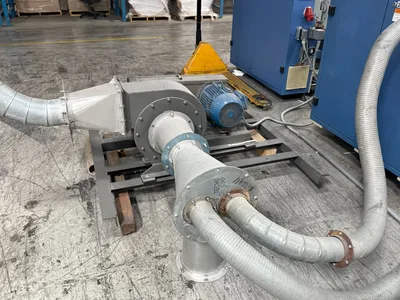

Infeed edge trim with waste evacuation capability
Top/bottom belt-driven exit with gap control and jam-clear features
Dual cylinder design allows chip-out or clean sheeting
Register scanner reads top or bottom marks
Transformer included: 208V–400V

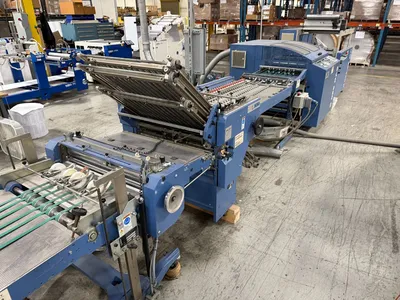

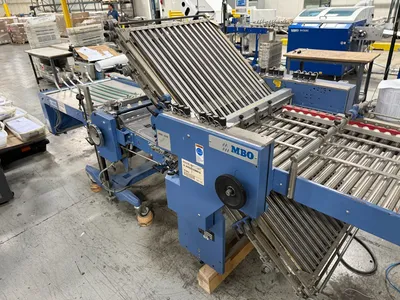

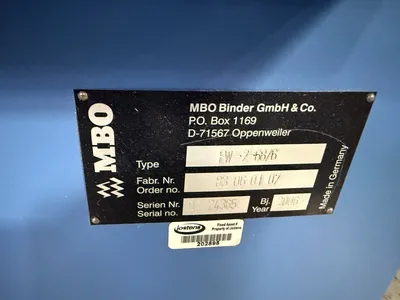

MBO ASP66L Stream Delivery System (Type FW-2-68/6)
Mobile and height-adjustable with integrated pressing station
Max Working Width: 26"
Speed Range: 98–525 ft/min
Pressing Force: 20,000 N
Infeed Height: 15 ¾" – 37 ⅜"
Built-in marking device for batch counts
Low marking risk – ideal for freshly printed products
Optional length extension capability
Spreading belts and stream control for easy handling

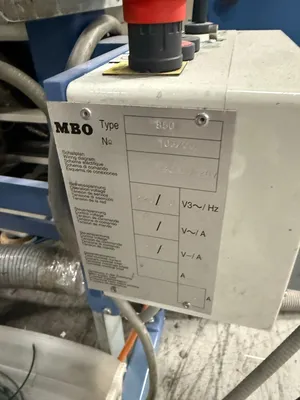

MBO Table Section (Type 850)
Integrated height adjustment
Independently powered support for infeed or downstream control
Suitable for stable material transfer to stream delivery or stacker

🛠️ Applications
Roll-to-sheet or roll-to-stream finishing
Direct Mail, Billing, Statements
Cut-sheet finishing after high-speed inkjet or offset print
Z-folds, chip-outs, variable cutoff marketing formats
