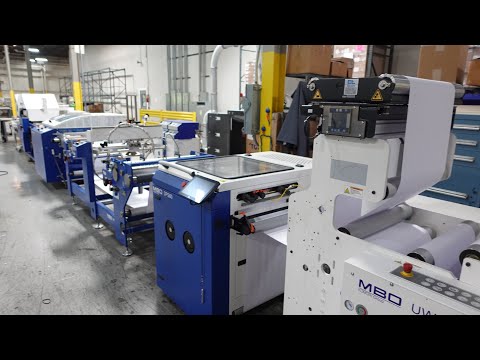

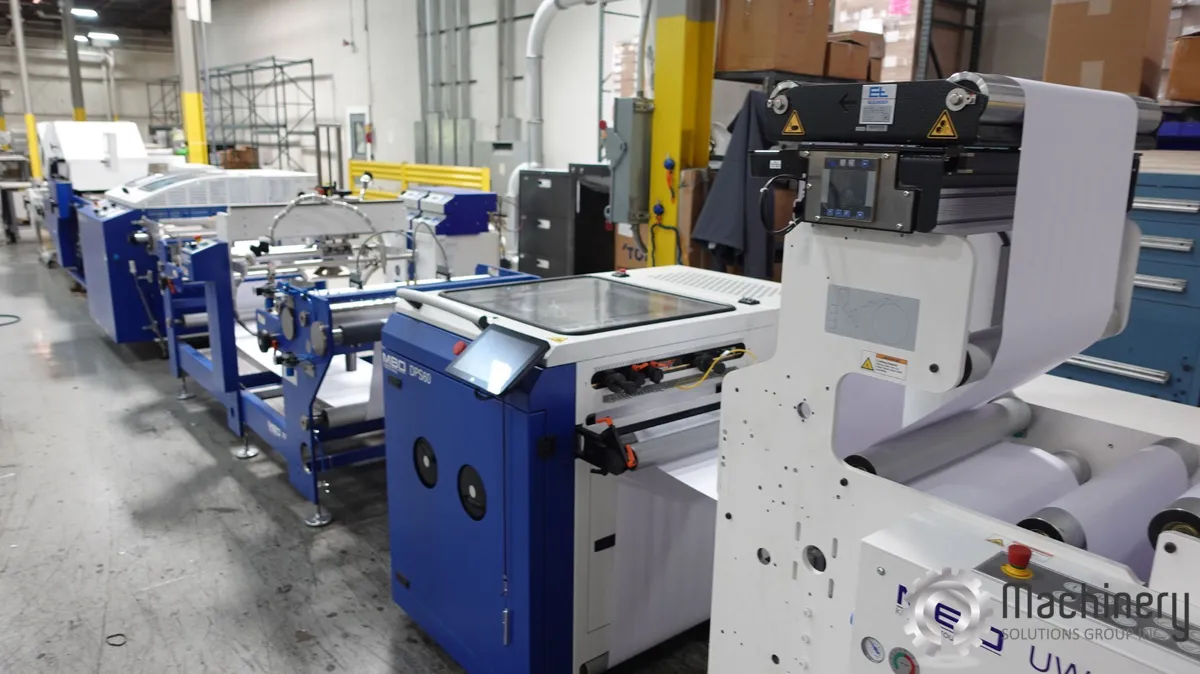

For Sale: 2023 MBO ASP66L Offline Finishing Line
Ideal for Digital Pre-Printed Roll Finishing & Direct Mail Applications
Available Immediately – Excellent Condition

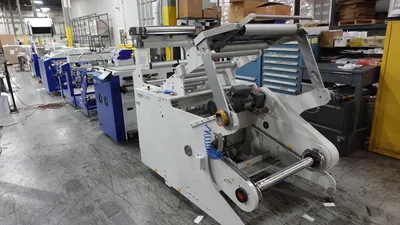

his late-model 2023 MBO ASP66L Offline Finishing Line is a high-speed, roll-fed nearpress finishing system ideal for digitally pre-printed web applications including direct mail, transactional, and commercial print workflows. Designed for precision, flexibility, and minimal operator intervention, this line handles everything from scoring to folding, sheeting, and high-volume stack delivery.
The system is built from MBO’s most advanced modules and was commissioned in 2024. It remains in mint condition, under power, and is ready for inspection.

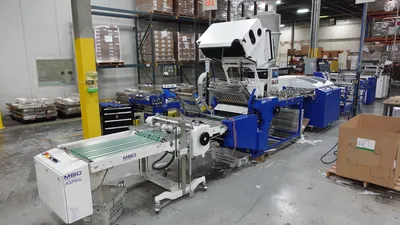

(1) 2023 MBO ASP66L Nearline Finishing Line SN 11 43 87 21 10 03

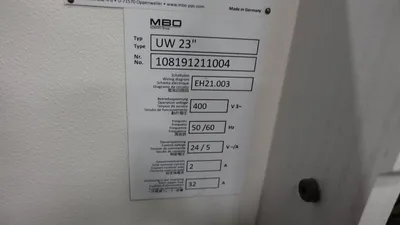

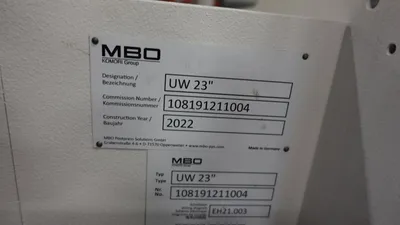

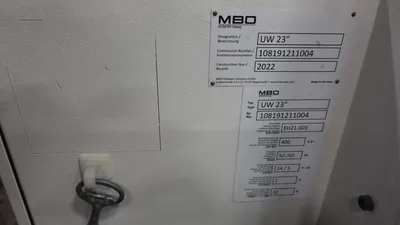

o UW 23” Unwinder SN 108191211004 (2022)

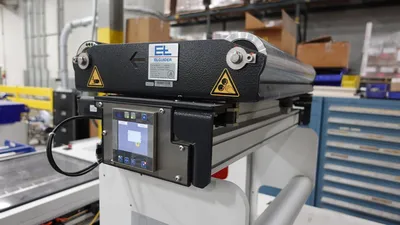

o E & L ELGUIDER Web Guide System DRB2501 00836756
o DPS60 Perf & Score Unit Type SVC 525 C SN 105523211004
o PFS Plofold Plow Folding System
o SVC 52SC Sheeter

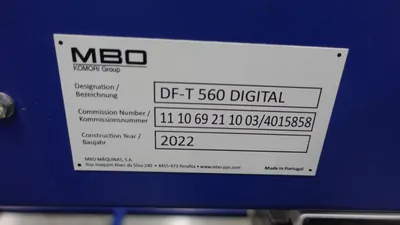

o DF-T 560 Digital Transfer Table sn 11 10 69 21 10 03/4015858 (2022)

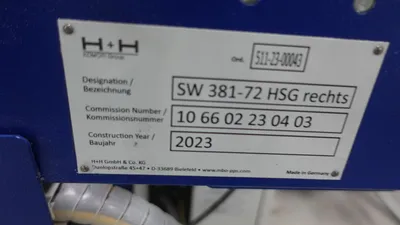

o H+H SW381-72 HSG rechts Transfer Table SN 10 66 02 23 04 03 (2023)

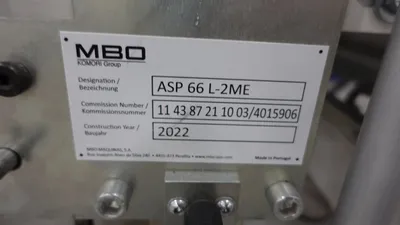

o AS66L-2ME Press Delivery System 11 43 87 21 10 03/4015906 (2022)
o Airtrax Waste Removal System – Airflex PE-200-SHP
o Cut Counts: Cuts Cylinder 1 423484 - Cuts Cylinder 2 428725
🔧 System Modules & Specifications:
UW23 Unwinder
Constant tension feeding up to 23” web width
Handles rolls up to 52" in diameter
Dancer arm tension control, edge guide, splicing table
Compatible with 3” and 6” diameter shafts

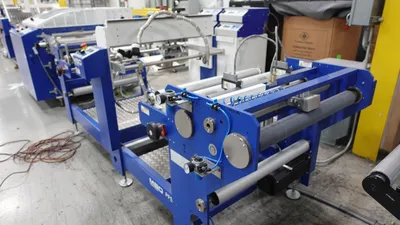

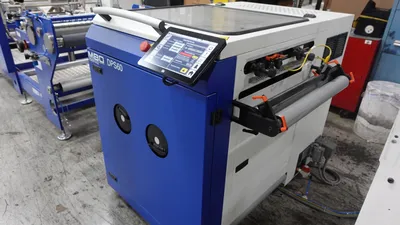

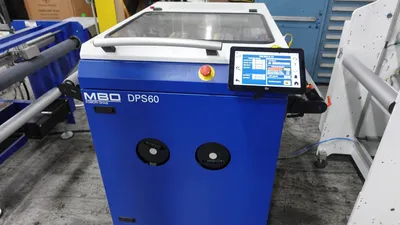

DPS60 Dynamic Perforation & Score Unit
Inline dynamic cross/long perf with HMI programmability
Dual tool cassette system
Perf spacing from 2” to 20” adjustable in 1" increments
Pneumatically actuated perf holders

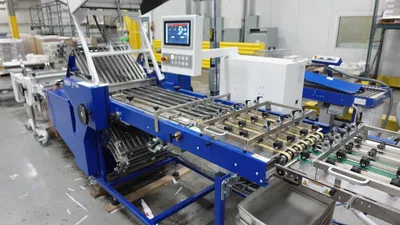

PFS Web-Based Plofold System
Full web plow-fold capability up to 14” wide
Configurable for single or multi-fold
Inline web guide, dancer, and tension controls

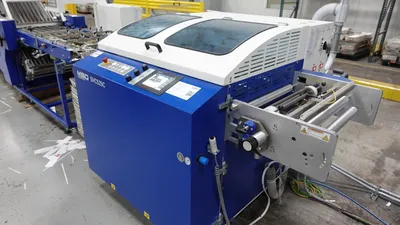

SVC 52SC High-Speed Sheeter
Cut sheet production from plow-fold or full web
Adjustable suction heads, alignment guides, and waste trim
Trim accuracy ±0.010" with print mark registration
Handles wide media range: thin glossy to heavy stocks
DFT560 Transfer Table
Inline connection from cutter to folder or folder to stacker
Sheet control via driven belts, precise feeding & speed sync

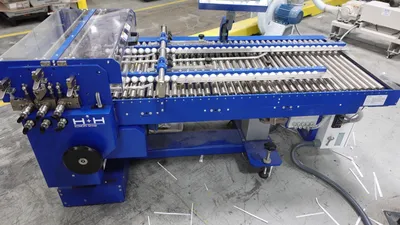

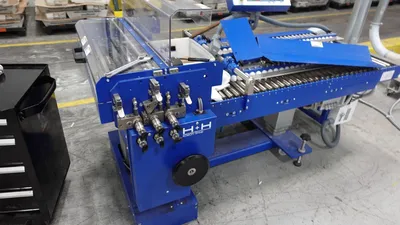

H+H 850.4-28 Transfer Table
Dual belt system for flat sheet transfer
Independent top/bottom belt controls
Adjustable height, angle, and integrated jogger

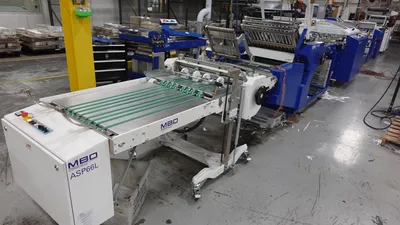

AS66L Press Delivery System with Marking
Stack delivery with high-speed offset marking
Handles a wide range of sheet sizes & weights
Touchscreen control and status display

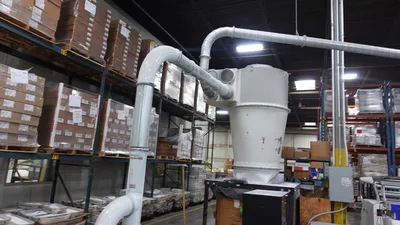

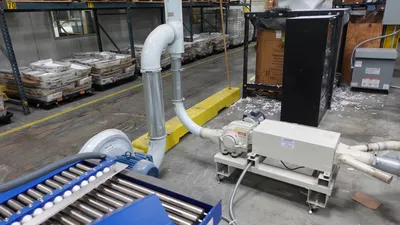

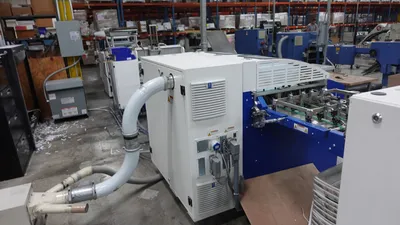

Airtrax Waste Removal System – Airflex PE-200-SHP
Inline trim evacuation with ducting & bag separator system
Dual silencers, cutter integration, and wheeled cart enclosure
Applications
Direct Mail, Transactional & VDP
Roll-to-Sheet or Roll-to-Fold Converting
Z-Folds, Letterfolds, Gatefolds, & Perforated Applications
High-Speed Offline Finishing for Digital Presses
