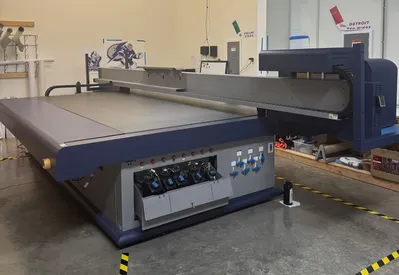

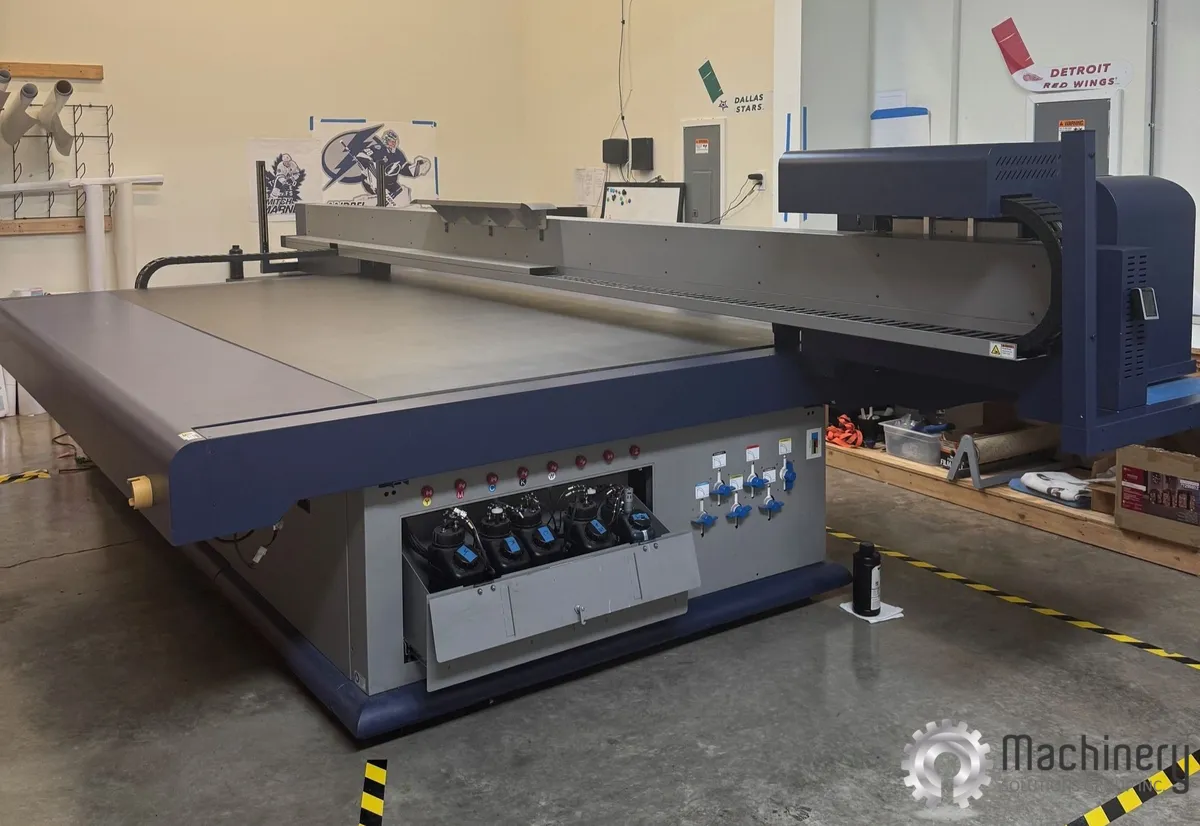

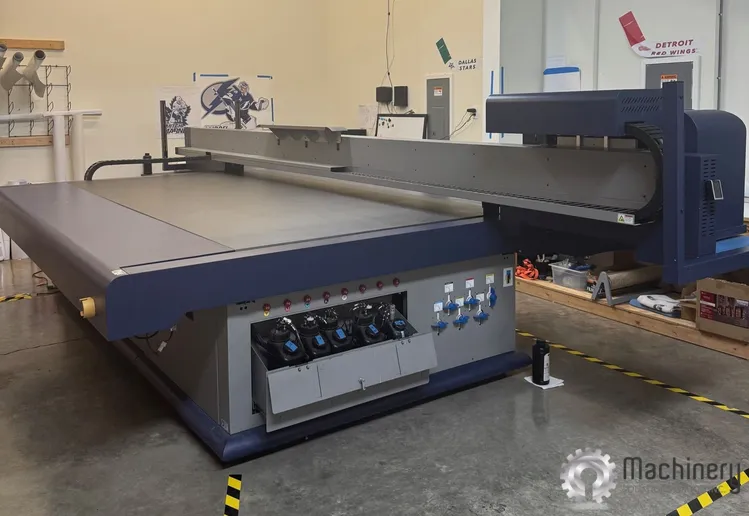

2023 Vanguard VK300D-HS Flatbed LED UV Printer
Have one to sell?
ConditionUsed
1 available
Increase your production capacity with the 2023 Vanguard VK300D-HS Flatbed LED UV Printer.
This high-speed model features Kyocera print heads, low operating hours, and output speeds up to 60 boards per hour.
With CMYK + White + Varnish ink capability and a 5' × 10' true flatbed, it delivers precision, reliability, and versatility for signage, graphics, and packaging applications.
📩 Contact us for pricing and inspection details.
• Print Area: 62" × 125" (5' × 10')
• Max Material Thickness: 4"
• Print Speed: 520–1,129 sq ft/hr (depending on configuration)
• Print Heads: 2 – 10 Kyocera KJ4A heads
• Resolution: Up to 1800 apparent DPI
• Ink Configuration: CMYK + White + Varnish
• Curing System: Liquid-cooled LED UV
• Material Type: Rigid & Flexible substrates
• Machine Dimensions: 18' 7" × 8' 3" × 4' 9"
• Weight: ~3,500 lbs
• Power: (2) AC 220 V Single Phase 30 A
Key Features
✅ High-Speed Performance – Up to 60 boards/hr for unmatched productivity
✅ True Flatbed Design – Precision printing on rigid materials up to 4" thick
✅ Kyocera Print Heads – Sharp details and consistent ink delivery
✅ LED UV Technology – Fast curing, low heat, and vibrant color results
✅ Advanced Controls – BandGUARD, CureGUARD, CrashGUARD, and other Vanguard automation systems for uptime and accuracy
2023 Vanguard VK300D-HS Flatbed LED UV Printer
• Kyocera KJ4A Print Heads (2 installed, up to 10 slots)
• Dual Cooling LED Curing System
• CMYK + White + Varnish Ink Capability
• High-resolution touch-screen interface
• Windows 7 (64-bit) Operating System
This 2023 Vanguard VK300D-HS is in excellent condition and available for immediate sale.
Contact Machinery Solutions Group to schedule an inspection or request pricing.
