Description

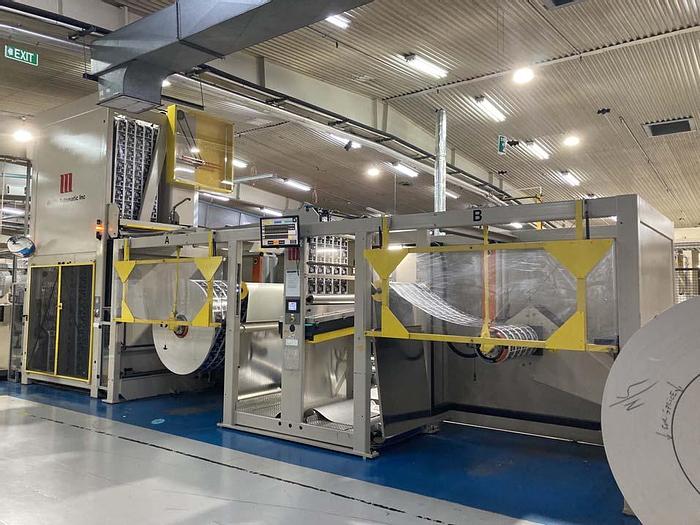

MARTIN MODEL MCBIR 08-33-84 AUTOMATIC REGISTERED BUTT SPLICER

32.5” WIDTH x 84” OD ROLLS


SPECIFICATIONS:


Maximum Splicing Speed: 250 mpm

Maximum Web Width: 825 mm

Minimum Web Width: 488 mm*

Maximum Roll Weight: 2320 kg

Maximum Roll Diameter: 2134 mm

Core Inside Diameter: 12 in (304 mm)

Idler Roller Nominal Diameter: 203 mm

Standard Operating Tension Range: 133 to 667 N

Web Running Direction: From right to left when viewed from the operator side

Material: 170 to 350 gsm

Specifications

ManufacturerMARTIN
ModelMCBIR 08-33-84 AUTOMATIC REGISTERED BUTT SPLICER
ConditionUsed
Stock Number9478
Maximum Splicing Speed250 mpm
Maximum Web Width825 mm
Minimum Web Width488 mm*
Maximum Roll Weight2320 kg
Maximum Roll Diameter2134 mm
Core Inside Diameter12 in (304 mm)
Idler Roller Nominal Diameter203 mm
Standard Operating Tension Range133 to 667 N
Material170 to 350 gsm
