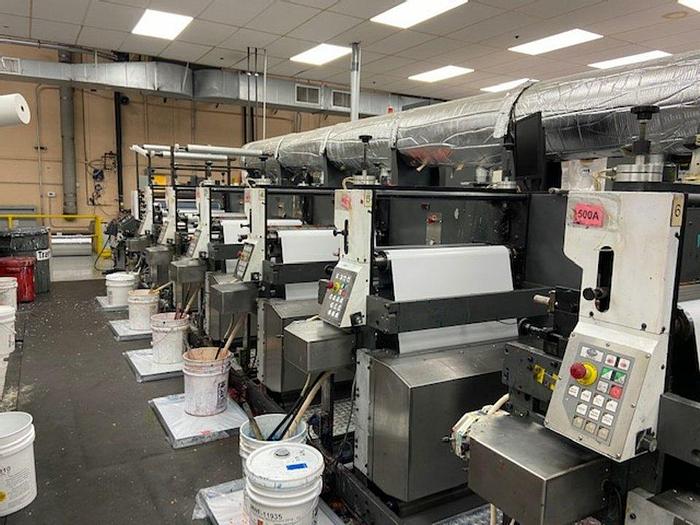

2012 Gonderflex Model GFLX 2800

28" Width x 9” - 24” Repeats

Equipped with:

(1) Unwind unit, 40” roll capacity, including two 3” core shaft, electronic sensing web guide, splicing table, hydraulic roll lift and automatic Magpower close loop tension control system with electromagnetic brake (1) Double side corona treatment unit (1) Servo motor driven variable in feed air nip roll station with closed loop tension (10) New generation high precision walk in model flexo print stations including (1) High-capacity hot air drying system (5) high pressure supply air blowers 1 high pressure exhaust air blower (2) UV dryer 1 lamp 400w per inch capacity with power supply, lamp housing and exhaust blower (1) IR drying system with 10 High capacity drying cabinets with variable power infrared lamps & hot air supply nozzles and temperature readout display (10) Motorized circumferential 360 register controls for all print stations (1) Slitting station with 3 air crush knives and lateral adjustment (1) Out feed air nip roll station (1) Supported motorized single rewind unit, 40” roll capacity including two 3” diameter core shafts, AC vector motor drive with automatic tension control, Quick change release upgrade (1) BST / Premius vision system with defect detection, front side (1) BST / Handyscan SHS4000 for back side


ModelGFLX 2800
Stock Number3682674
Maximum printing width28.00”
Maximum paper width28.00”
Printing repeats9” to 24”
Gearing1/8 circular pitch
Maximum mechanical speed500ft/min.
Drive360 register gear box
Main motorAC vector motor
Anilox motorsServo motor
Control panelIn front of the press
Air pressure100 PSI
Power requirement480V 10%, 3PH, 60Hz
Zone descriptionNon explosive
SubstrateAluminum foil min. 38 micron, film (2 mil) and Papers
Quantity1 available
